Ecoaims > CBR500 Camera rifle set (Ecoaims Display Device)

CBR500 Camera rifle set (Ecoaims Display Device)

CBR500 Camera rifle set (Ecoaims Display Device)

3702,25 € inc. VAT

Please note: Due to high demand, all sets with the ELT530 5-spot target, including this one, are out of stock until August 2026 (estimated). For inquiries, please contact our team: sales@ecoaims.com

This electronic rifle package is perfect for everyone from pro-level competitors to fundamental marksmanship training programs. Used by cadet programs around the world, the CBR500’s precise aiming pattern, hits and misses, customizable weight distribution, trigger, stock, and diopter sights take safe, low-operational-cost marksmanship to a new level. Train almost anywhere, at any time, practically without operational costs.

CBR500 is the ultimate coaching tool:

  • View precise aiming patterns
  • Replay every round shot by shot
  • Analyze your precision aiming patterns and shots with the E-Di3 Display Device, included in the set.

Electronic camera-based rifle package with a lightweight 5-spot ELT530 target, additional single-spot target, and E-Di3 Display Device.

Out of stock

This electronic rifle package is perfect for everyone from  pro-level competitors to hobbyists, and even for youth starting the marksmanship practice.

Ecoaims CBR500 Rifle serves as a great tool for shooting training, cadet-programs, reservist shooting drills and more. The product allows for a large number of shots at low operating costs. Ecoaims is a lead-free, safe, and easy-to-use wireless system.

Equipped with a hand rest and both left and right-handed reloading.

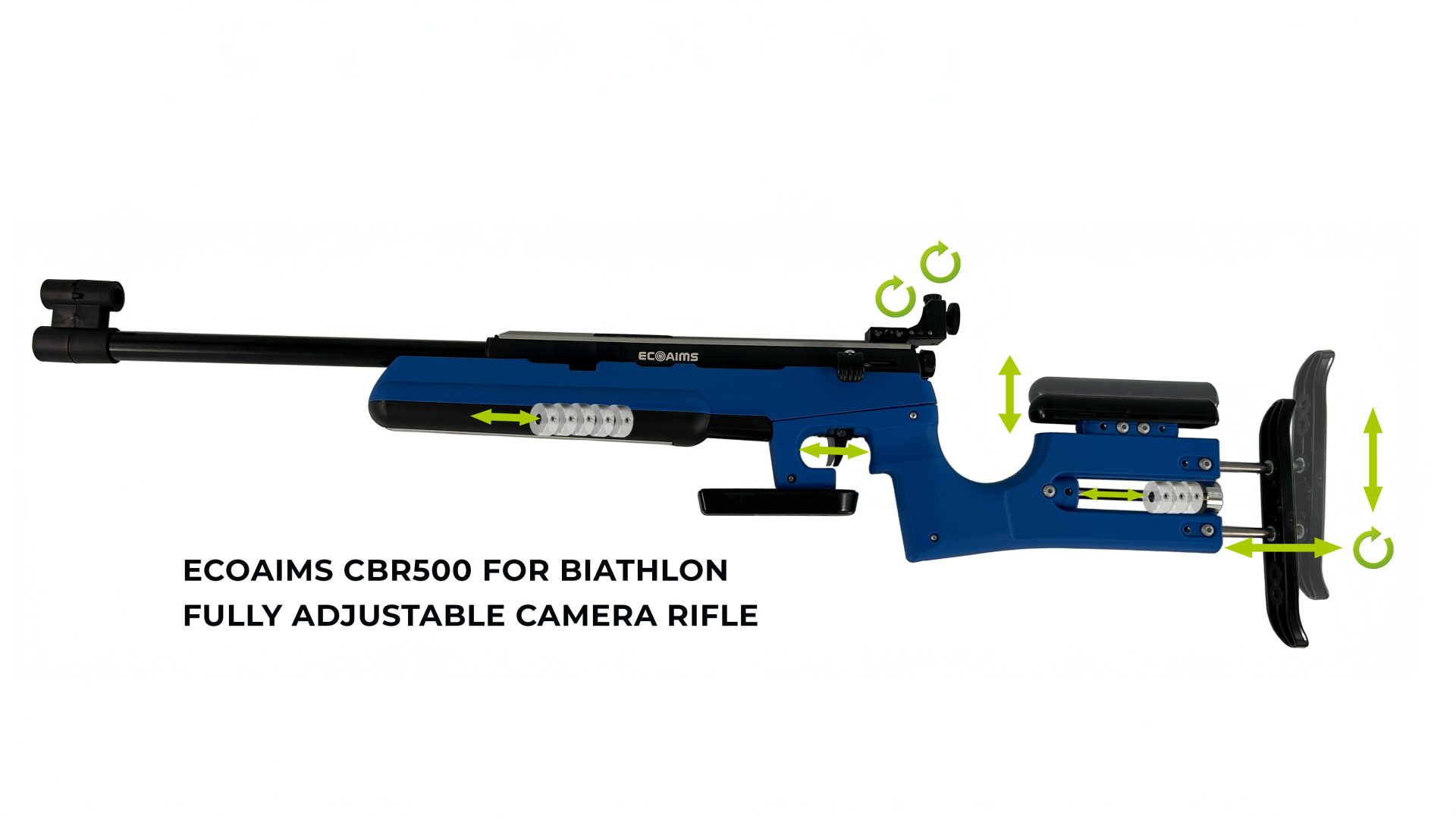

Ecoaims Rifle Set features

Standard weight of the rifle is 2,8 kg.

  • Comes with two weight discs installed)
    • With one additional balancing weight disc set: 3,3 kg
    • With two additional balancing weight disc sets: 3,7 kg

(One (1) weight set includes ten (10) discs of 50g each = 500g in total. Max. possible balancing weight on composite stocks is 2 sets = 1000g.)

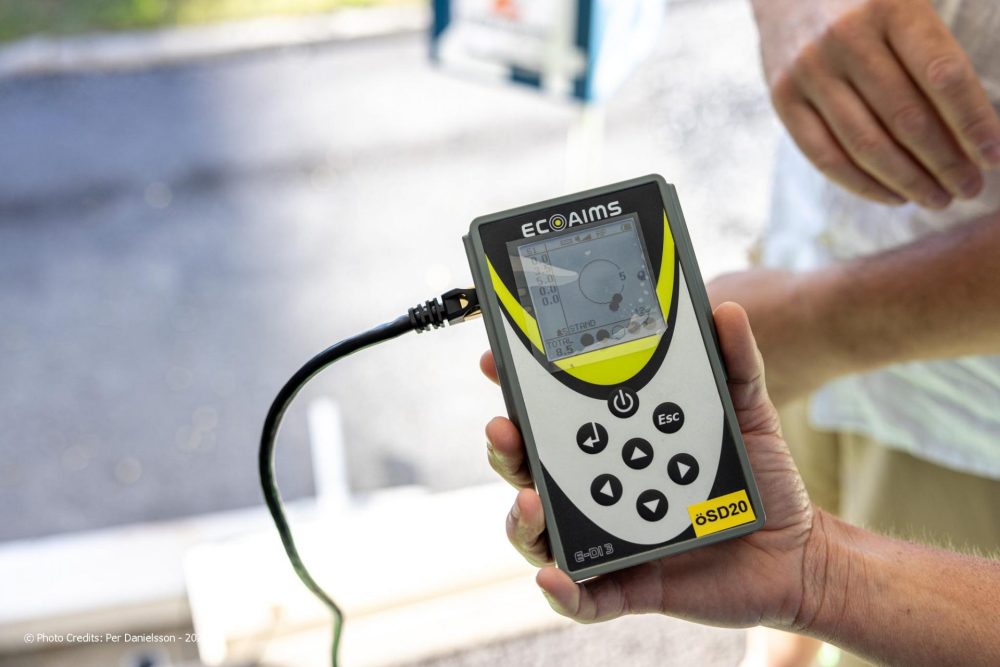

This set comes with the Ecoaims E-DI3 display.

With this rechargeable battery-powered device, you can:

  • See, save, and revisit your aiming pattern with shot times.
  • Switch between different modes, such as Biathlon Prone and Biathlon Standing.
  • Modify settings for your shooting, set penalty times, hit limits, shot counts, series count, sound signals, and much more.

The display connects to your rifle via a wireless radio connection and to the target via a cable, allowing you to start training instantly!

Technical data

Technical information:

Equipped with hand support and left and right cocking.

Parts included in rifle set K-0384-XX-XX-CBR:

  • 1 pce Diopter sights.
  • 1 pce USB cable, C - C.
  • 1 pce User manual, English.
  • 1 pce E-Di 3 display unit, rechargeable.
  • 1 pce Composite stock for CBR500, incl. hand support.
  • 1 pce Power supply unit 12V 1,6A 19W for E-Di3 and target.
  • 1 pce TAR-100/30L, electronic target, 1 x 30 mm spot, rechargeable via USB C.
  • 1 pce CBR500 optical rifle unit, left and right hand cocking, rechargeable via USB C.
  • 1 pce USB power supply, including plugs for EU, UK, US, AU sockets (type C, G, A, O).
  • 1 pce Medium size rifle case, interior dimensions 117,5x29x12 cm, with push & pull locks.
  • 1 pce ELT530, electronic 5-spottarget, 5 x 30 mm spots, rechargeable via USB C or RJ45 target control cable (12 V).
  • 1 pce Target control cable RJ45 - RJ45, 15 m, for connection between ELT-530 target and E-Di3 display unit.

Please indicate desired color with order.

Ecoaims CBR500 Electronic Quick Start Guide (ELT530 target)

Ecoaims CBR500 Electronic User Manual (USB C port - 2025 onwards)

Ecoaims CBR500 Electronic Set User Manual (USB Mini port - Before 2025)
